Visual Mode

The LeanSpec UI provides a visual web interface for browsing and managing specs. It's perfect for visual learners, team presentations, and exploratory spec browsing.

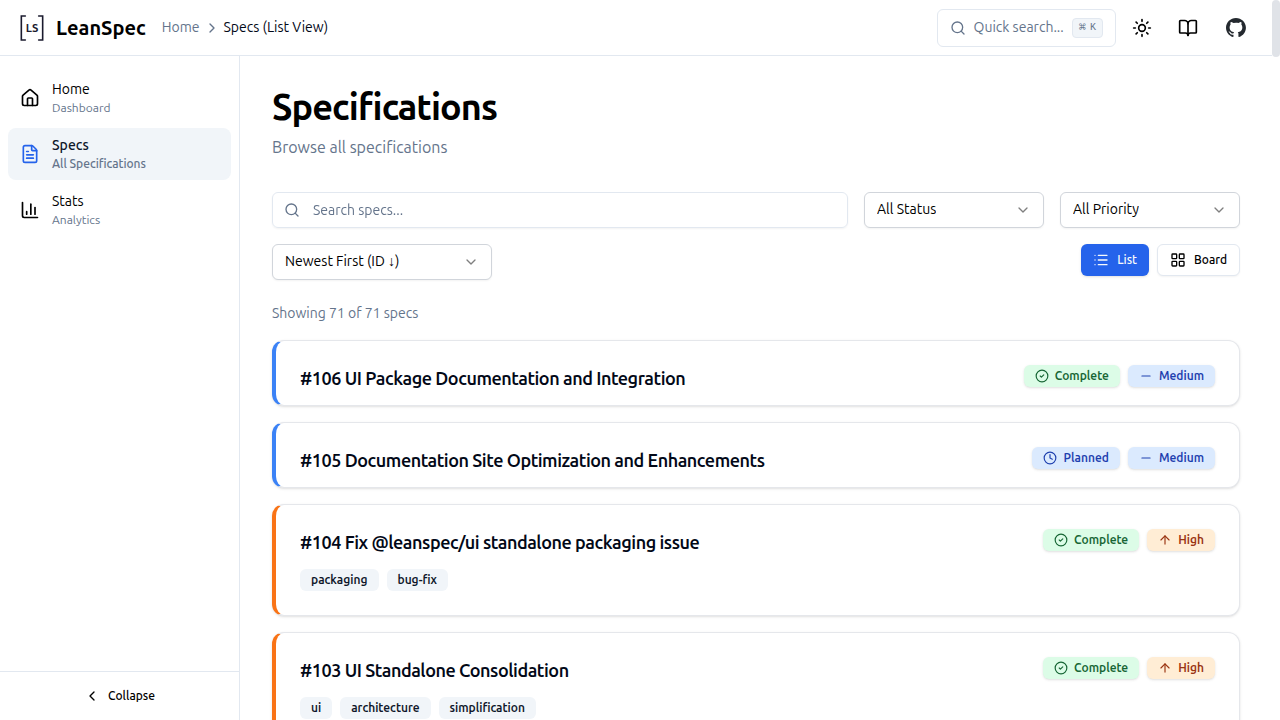

LeanSpec UI list view showing spec cards with search and filters

What is Visual Mode?​

Visual Mode is a local web application that provides:

  • Interactive Spec Browser: Browse specs with rich formatting and syntax highlighting
  • Dependency Visualization: See relationships between specs as an interactive graph
  • Project Overview: View project stats and metrics at a glance
  • Search & Filtering: Quickly find specs by status, tags, or content
  • Board View: Kanban-style visualization of spec status

When to Use UI vs CLI​

Use the UI when you want to:

  • Explore and discover specs visually
  • Present specs to stakeholders or team members
  • Visualize dependencies and relationships
  • Get a high-level project overview
  • Browse specs without remembering commands

Use the CLI when you want to:

  • Create or edit specs quickly
  • Automate workflows with scripts
  • Integrate with CI/CD pipelines
  • Work in terminal-only environments
  • Perform bulk operations

Getting Started​

Method 1: Using lean-spec ui​

If you have the LeanSpec CLI installed:

lean-spec ui

This command will:

  • Auto-detect your specs directory
  • Start the web server on port 3000
  • Open your default browser automatically

Method 2: Using npx @leanspec/ui​

You can run the UI directly without installing the CLI:

npx @leanspec/ui

This is useful for:

  • Projects that don't have the CLI installed
  • Quick one-time usage
  • Sharing with team members who don't have LeanSpec installed

Options​

Both methods support the same options:

# Custom specs directory
lean-spec ui --specs ./my-specs

# Custom port
lean-spec ui --port 3100

# Don't auto-open browser
lean-spec ui --no-open

# Combine options
lean-spec ui --specs ./docs/specs --port 3100 --no-open

Available Options:

  • -s, --specs <dir> - Specify specs directory (auto-detected by default)
  • -p, --port <port> - Server port (default: 3000)
  • --no-open - Don't open browser automatically

Features​

Spec Browser​

The main interface shows all your specs in a list view:

  • Rich Formatting: Markdown rendered with syntax highlighting
  • Status Indicators: Visual badges for spec status (planned, active, done, etc.)
  • Quick Filters: Filter by status, tags, or priority
  • Search: Full-text search across all specs

List view with filters and search input highlighted

Spec Detail View​

Click any spec to see:

  • Full Content: Complete spec rendered with proper formatting
  • Metadata: All frontmatter fields displayed clearly
  • Related Specs: Links to dependencies and related work
  • Quick Actions: Links to edit, view source, or open in file system

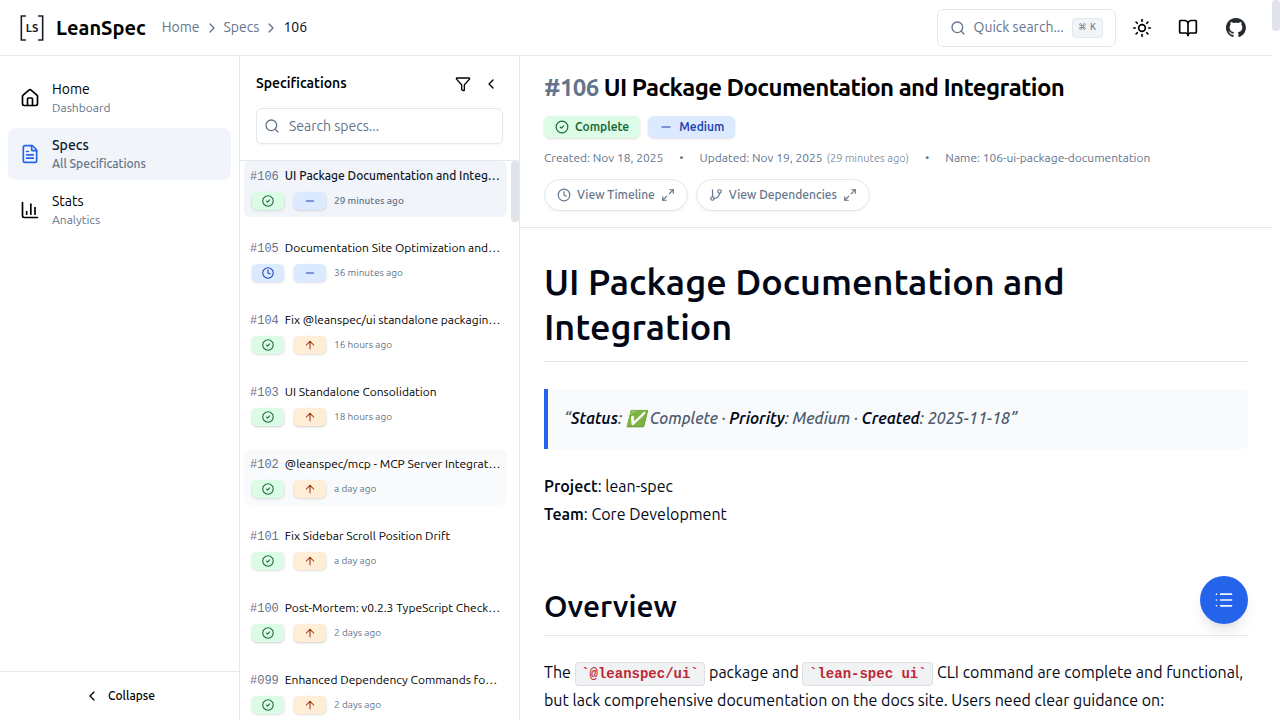

Spec detail view showing metadata, actions, and rendered markdown

Dependency Graph​

Visualize how specs relate to each other:

  • Interactive Graph: Drag nodes, zoom, and pan
  • Relationship Lines: See which specs depend on others
  • Click to Navigate: Click any node to view that spec
  • Filter by Status: Show only active specs, completed work, etc.

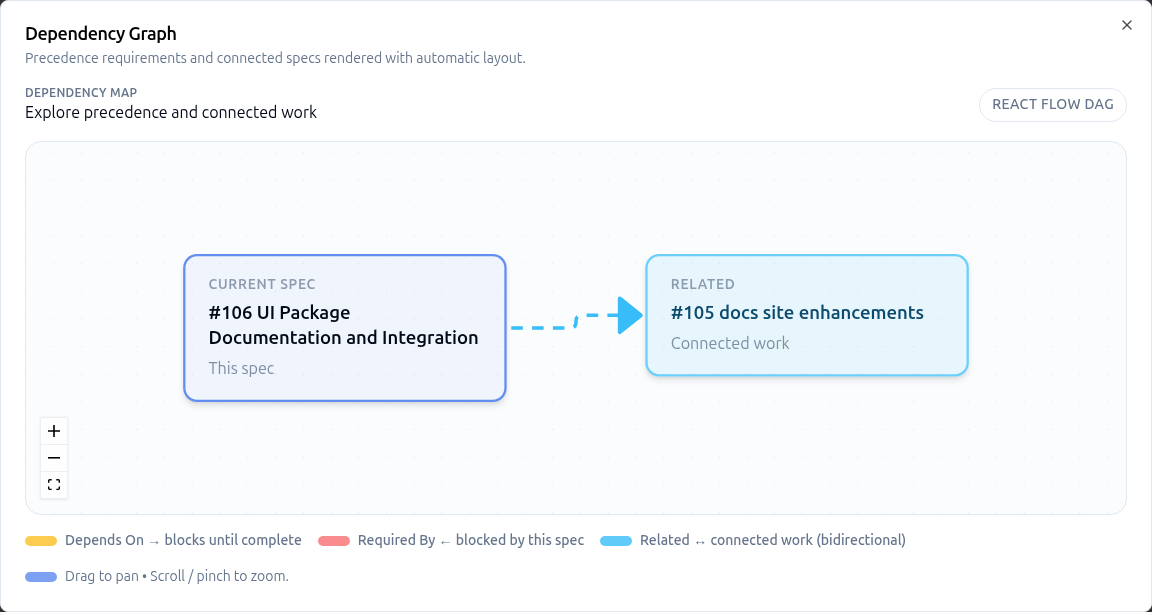

Dependency graph modal with current spec and related work nodes

Board View​

Kanban-style view of specs organized by status:

  • Drag and Drop: Move specs between status columns (if enabled)
  • Status Columns: Planned, Active, Done, etc.
  • Card Previews: See spec title, tags, and assignee at a glance

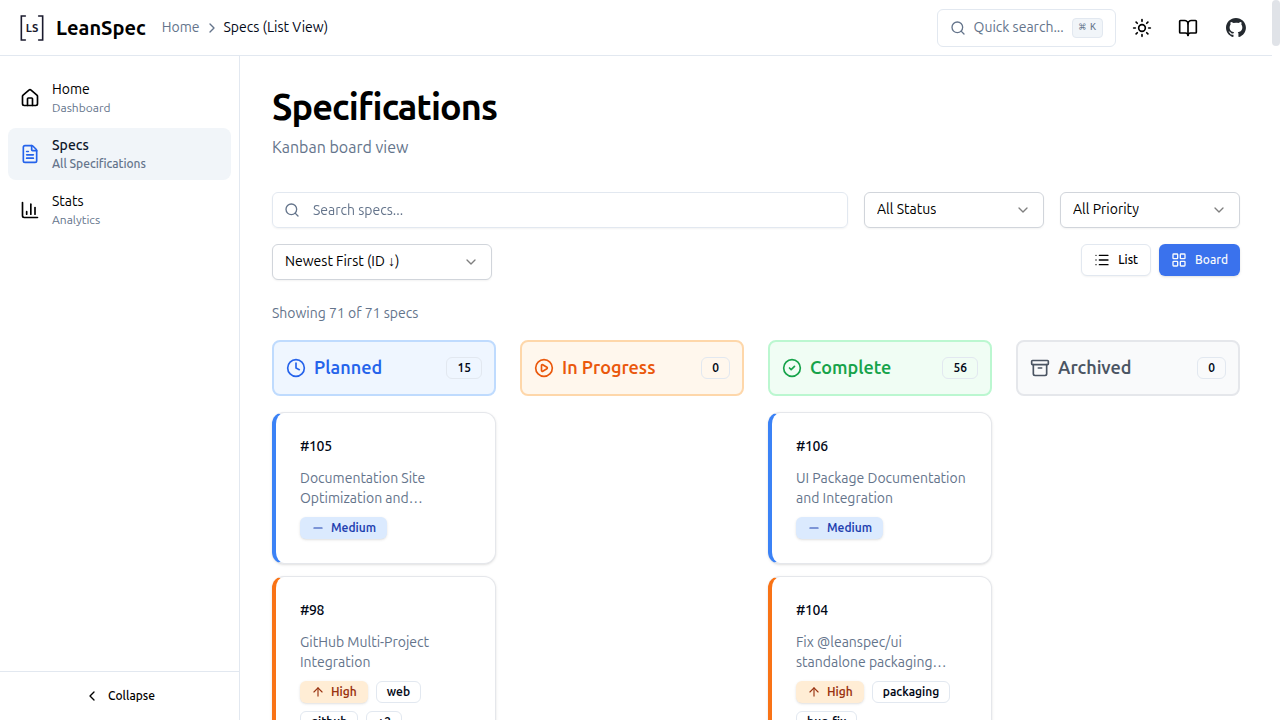

Board view with Planned, In Progress, Complete, and Archived columns

Project Stats​

Dashboard showing project metrics:

  • Total Specs: Overall spec count
  • By Status: Breakdown of specs in each status
  • By Priority: Distribution of priority levels
  • By Tags: Most commonly used tags

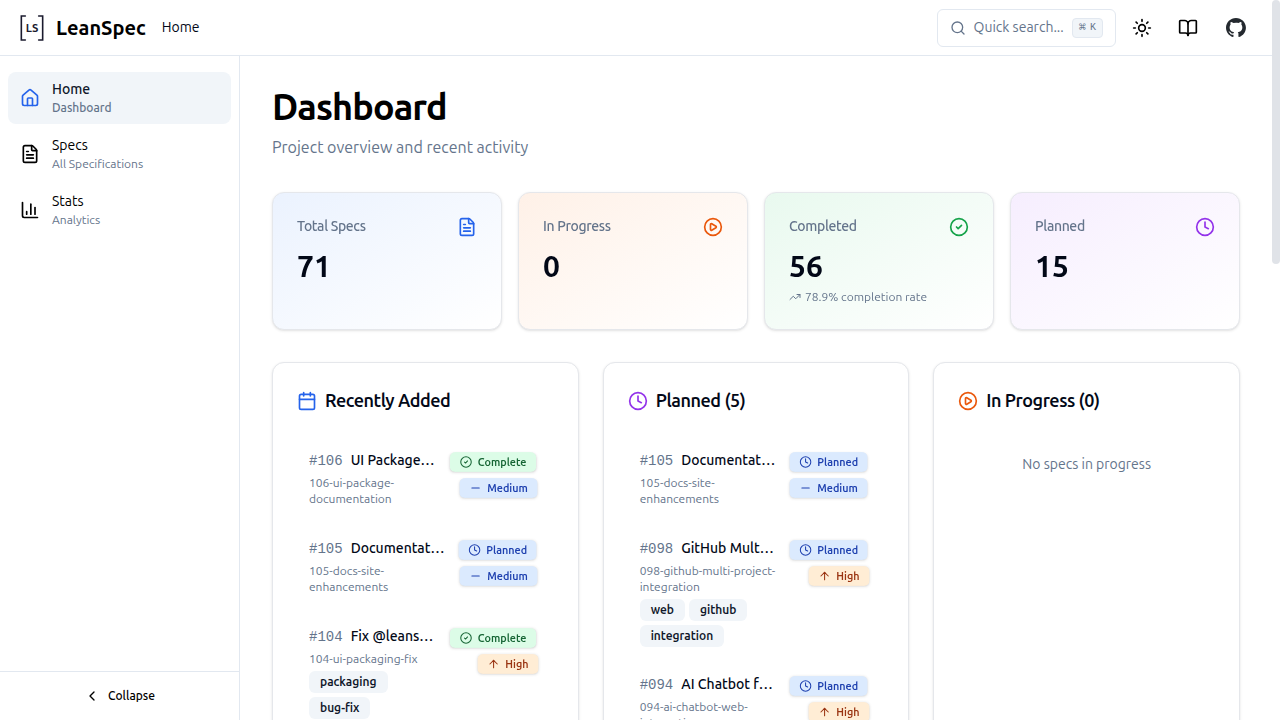

Dashboard summary tiles plus Recently Added, Planned, and activity feeds

Search View​

Need to find a specific spec? The search UI updates results instantly as you type, and the board view reflects the filtered set.

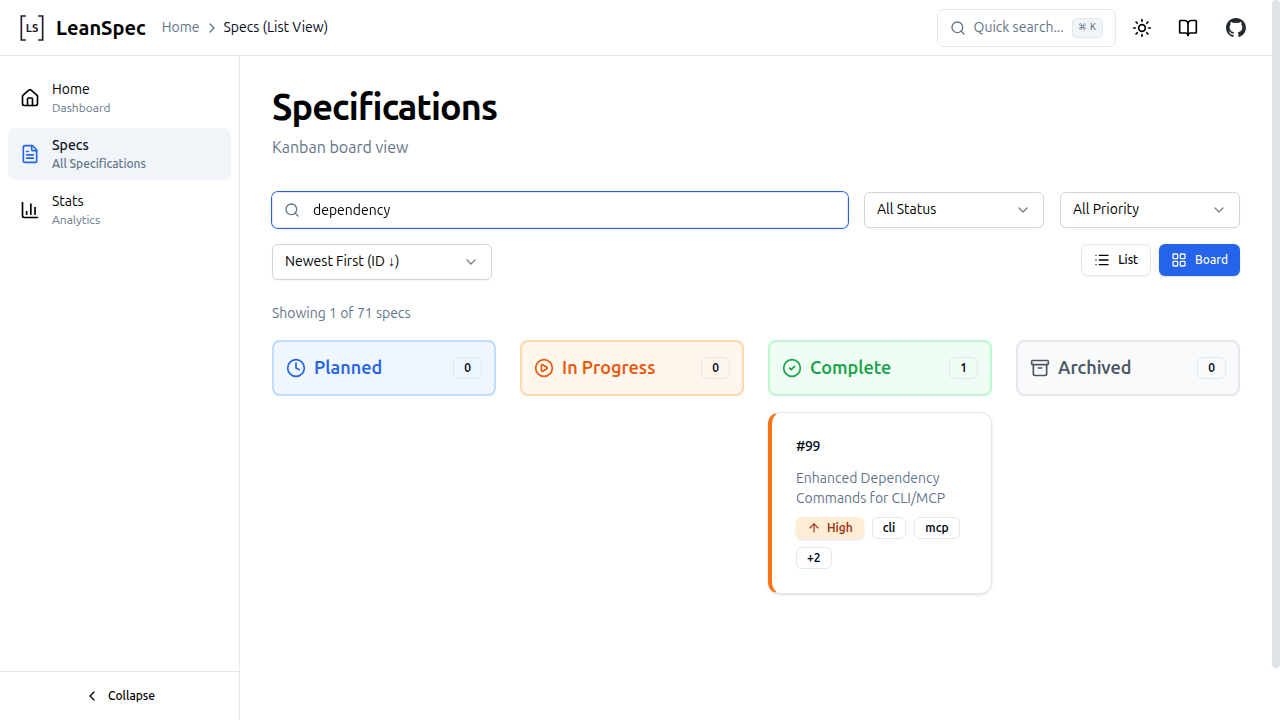

Search filtering to dependency-related specs across board columns

Architecture Overview​

Monorepo vs External Projects​

How Filesystem Mode Works​

The UI uses filesystem mode, which means it stays in sync with your local files automatically.

Direct File Access​

  • No database required
  • Reads directly from your specs/ directory
  • No setup or configuration needed

Realtime Updates​

  • 60-second cache TTL
  • Changes to spec files appear automatically
  • Edit specs in your editor, see updates in UI

Why This Architecture?​

Simplicity: No database to configure, migrate, or maintain

Reliability: Your specs are always in sync with the file system

Portability: Works in any project with a specs/ directory

Performance: Caching ensures fast load times while staying current

Development Workflows​

Working with the UI and CLI Together​

The UI and CLI complement each other:

# Terminal 1: Run the UI
lean-spec ui

# Terminal 2: Work with specs
lean-spec create new-feature
lean-spec update new-feature --status=active

# The UI automatically reflects changes within 60 seconds

Team Collaboration​

Share on Local Network:

# Find your IP address
ifconfig | grep "inet " # or ipconfig on Windows

# Start UI and share the URL
lean-spec ui --port 3000
# Share: http://192.168.1.xxx:3000

For Remote Teams:

  • Consider deploying the UI to a shared server
  • Use ngrok or similar tools for temporary sharing
  • Or share screenshots/screen recordings

Presentations and Demos​

The UI is great for presenting specs to stakeholders:

  1. Clean Interface: Professional, distraction-free view
  2. Dependency Graphs: Visualize project structure
  3. Board View: Show progress and status
  4. Interactive: Navigate between related specs during discussion

Troubleshooting​

Specs Directory Not Found​

Problem: Error: Could not find specs directory

Solution:

# Explicitly specify the directory
lean-spec ui --specs ./path/to/specs

# Or ensure you're in the project root
cd /path/to/project
lean-spec ui

Port Already in Use​

Problem: Error: Port 3000 is already in use

Solution:

# Use a different port
lean-spec ui --port 3100

# Or stop the process using port 3000
# On macOS/Linux:
lsof -ti:3000 | xargs kill

# On Windows:
netstat -ano | findstr :3000
taskkill /PID <PID> /F

UI Not Opening in Browser​

Problem: Server starts but browser doesn't open

Solution:

# Manually open: http://localhost:3000
# Or disable auto-open and use your preferred browser
lean-spec ui --no-open

Outdated UI Version​

Problem: Features missing or UI looks different

Solution:

# Clear npm cache and reinstall
npx clear-npx-cache
npx @leanspec/ui@latest

# Or if using CLI, update it
npm install -g @leanspec/cli@latest

Changes Not Appearing​

Problem: Edited spec but UI still shows old content

Solution:

  • Wait up to 60 seconds for cache to expire
  • Hard refresh browser (Cmd+Shift+R / Ctrl+Shift+R)
  • Check file was saved correctly

Build Not Found (Monorepo Dev Mode)​

Problem: Error: Build directory not found

Solution: This only affects LeanSpec contributors in the monorepo:

cd packages/web
npm run build

Tips & Best Practices​

Performance​

  • The UI caches specs for 60 seconds - large projects load quickly
  • Use search and filters to narrow down what you're viewing
  • Close other browser tabs if the UI feels slow

Workflow Integration​

  • Keep the UI running in a browser tab while you work
  • Use it as your "spec dashboard" alongside your code editor
  • Review specs in the UI before starting implementation

Team Adoption​

  • Demo the UI in team meetings to increase adoption
  • Share the URL during spec reviews
  • Use board view for sprint planning meetings
